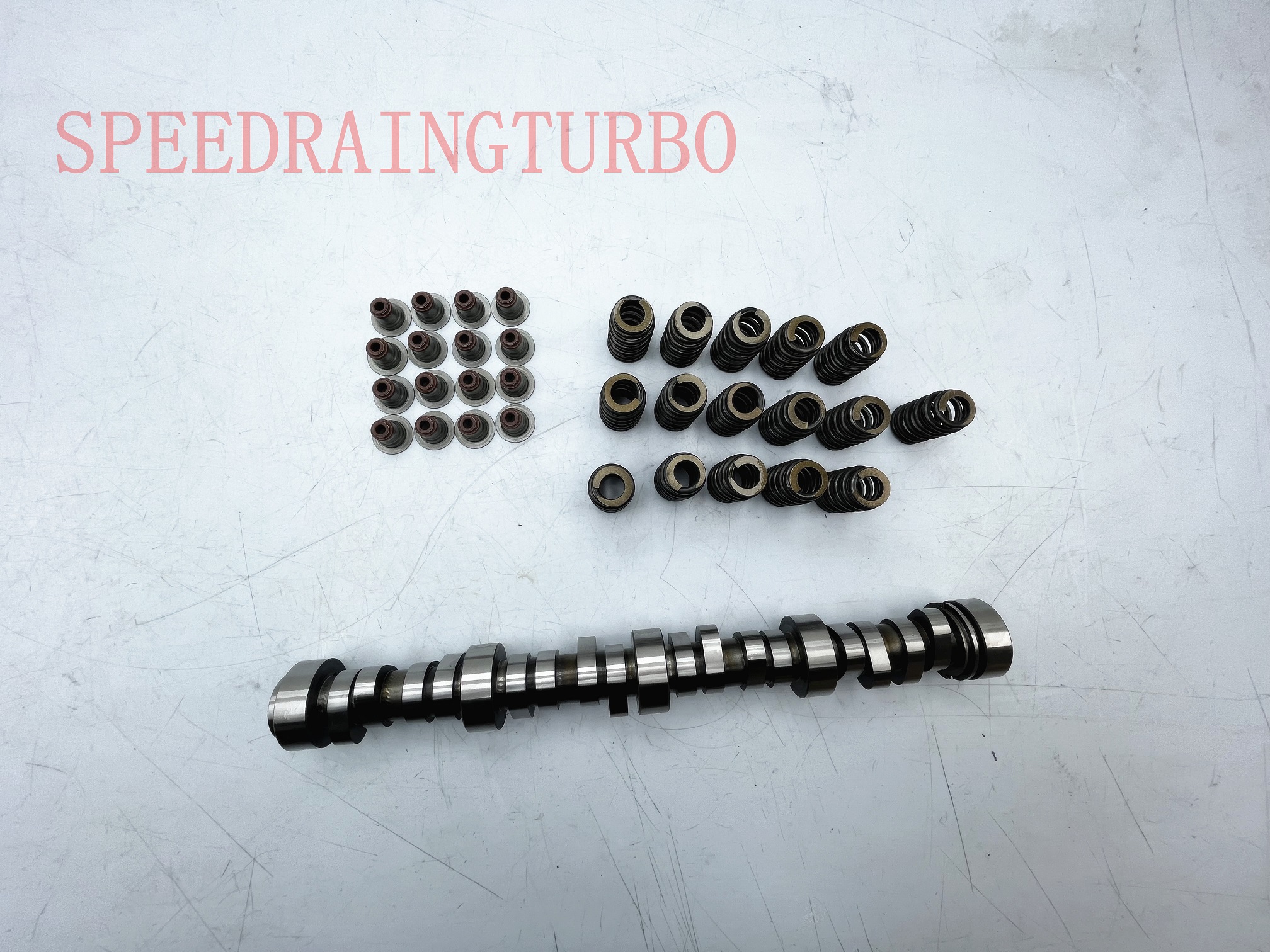

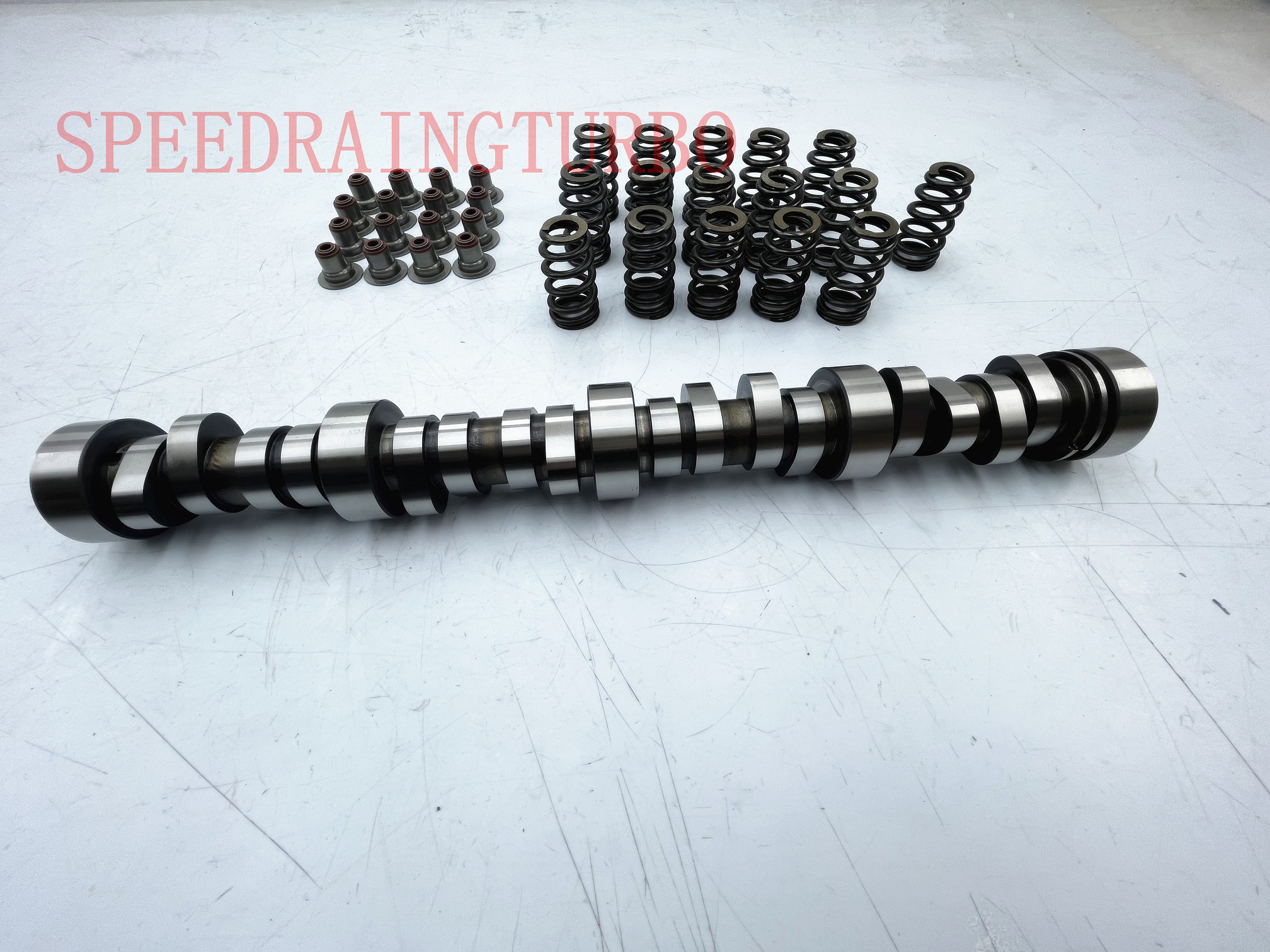

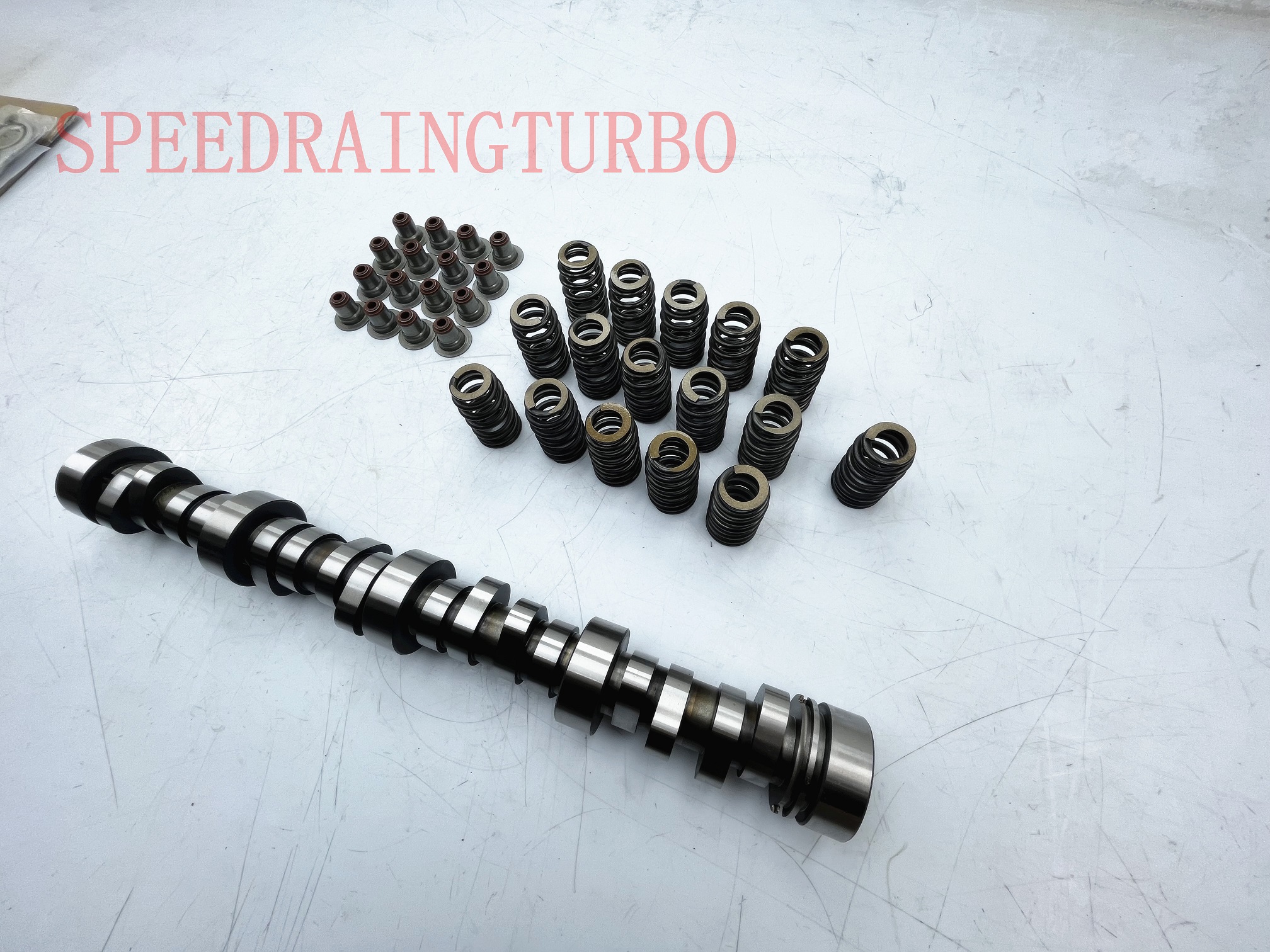

For Stage 2 LS Truck Cam Kit-Silverado Sierra 4.8 5.3 6.0 Truck Camshaft Kit E-1840-P, E1840P, HL2148S, PAC-1218, PR-15740S
$110.00$125.00 (-12%)
16x Matching Springs Set
16x Valve seals
Sloppy Mechanics Stage 2 Camshaft Kit LS1 4.8 5.3 5.7 6.0 6.2 LS Cam LQ4 LM7 L33
16x Matching Springs Set
16x Valve seals
GM Chevy 1997-2007 LS L92 L99 5.3L 5.7L 6.0L 6.2L1997-2007 V8 LSx Sloppy Stage 2
Specs
E-1840-P Engine Camshaft for GM Chevy
Engine Type: LS-Series
Camshaft Type: Hydraulic Roller
Intake Duration: @ .050″: 228°
Exhaust Duration: @ .050″: 230°
Intake Valve Lift: .585″
Exhaust Valve Lift: .585″
Lobe Separation: 112°
Intake Centerline: 108°
Advertised Intake Duration: 283°
Advertised Exhaust Duration: 286°
16pcs PAC-1218 Drop-In Valve Springs
Outside Diameter of Outer Spring (in): 1.290 in.
Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Install Load: 130lbs
Install Height: 1.800″
Open Height: 1.175″
Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Pushrods
7.400″ Chromoly One Piece Pushrods, 5/16″ diameter, and .080″ wal
16pcs 12482063 Viton Valve Seals
Valve Type:Intake and Exhaust
Engines:LS1 LS2 LS4 LS6 LQ4 LQ9 LM7 L59 LR4 LM4 L33 L76
Fitment Type:Direct Replacement
Additional information
| Weight | 45 kg |
|---|---|
| Dimensions | 45 × 25 × 14 cm |
